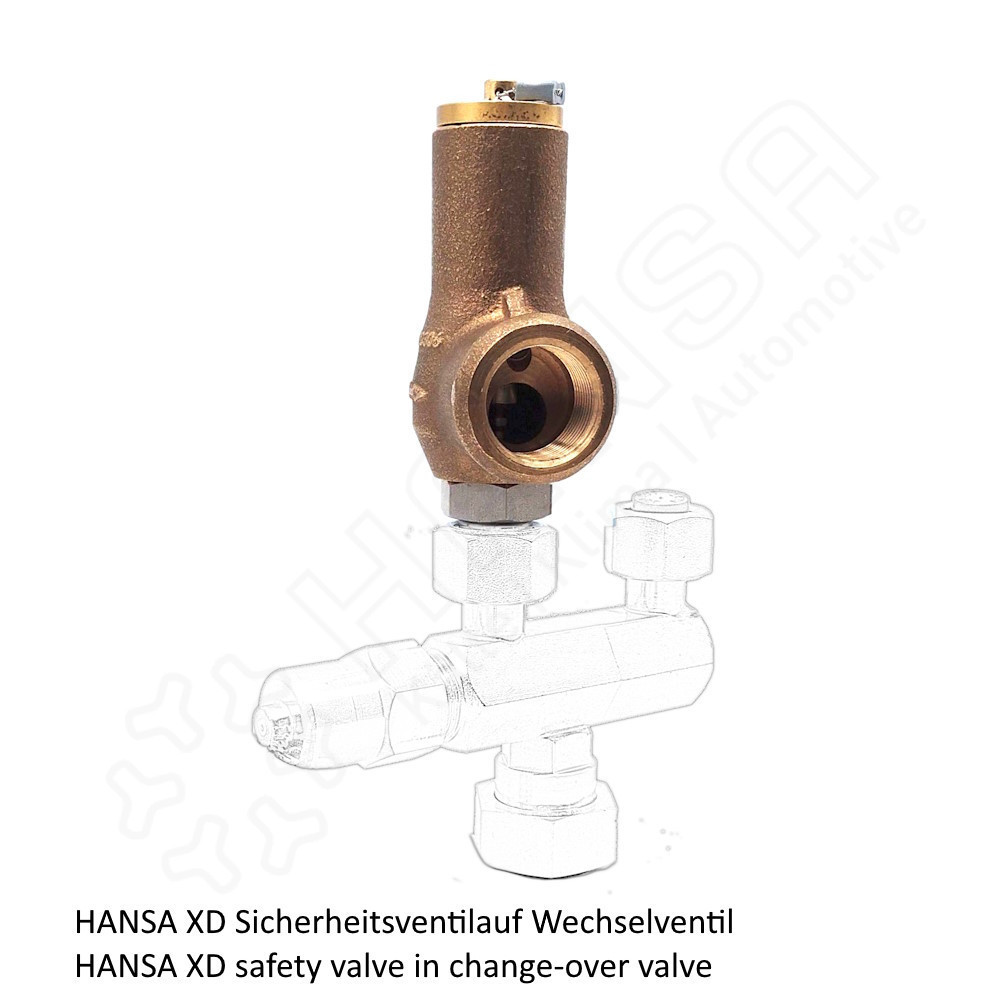

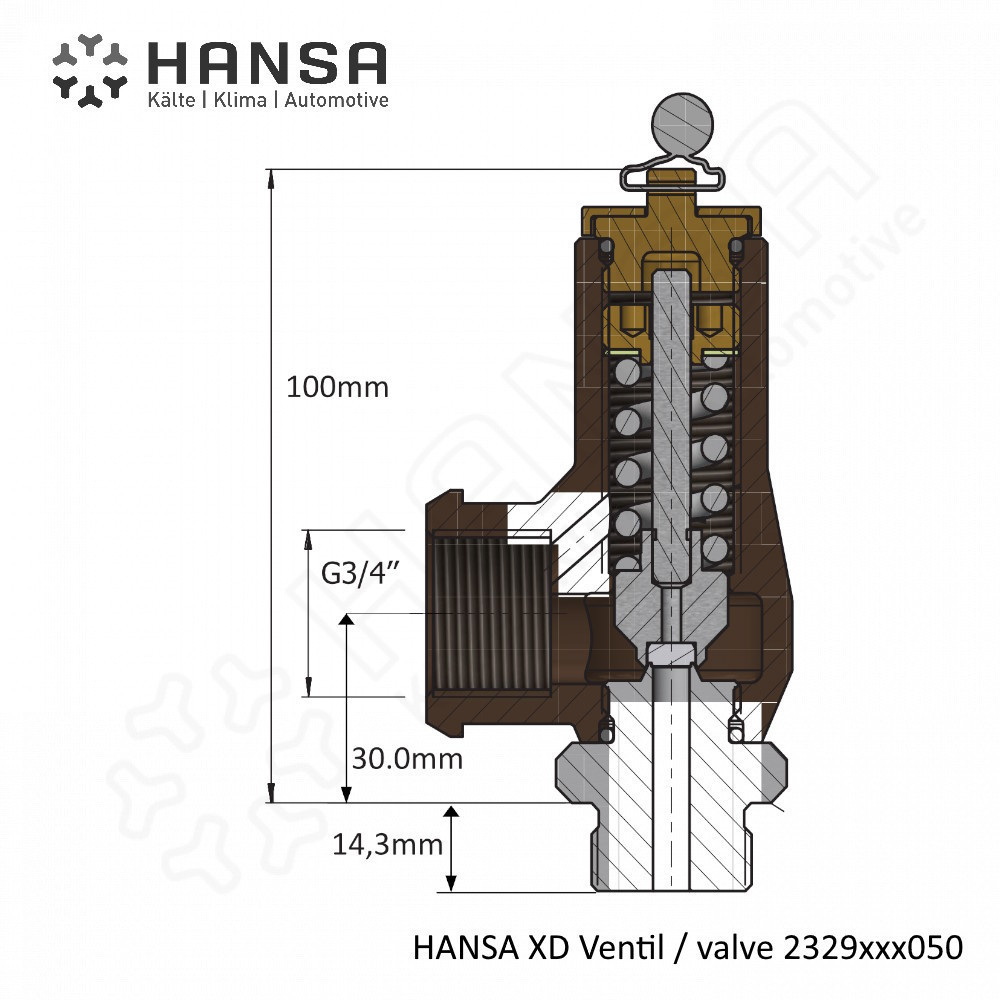

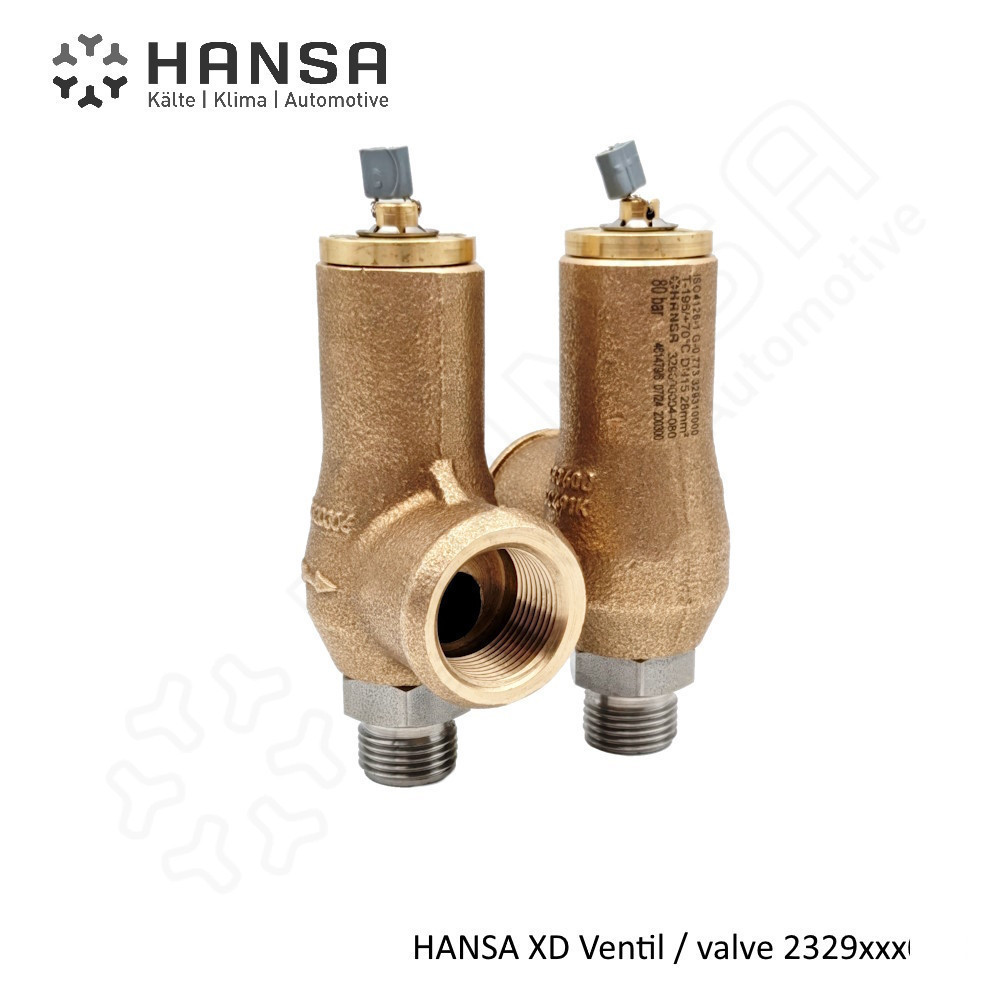

Safety valve XD-ÜSV 200 bar class
for CO2 / R744 refrigeration systems 60 - 200 bar and other technical gase
Connetcion G3/4'' (BSP)
size (LxWxH): 48x41x120 mm
Weight: 0,64 kg
Part number: 2329xxx350 (xxx = ooening pressure in bar)
| Design type | Direct acting spring loaded valves | |
| Opening characteristic | Standard safety valve | |
| Type designation | XD | |
| Part number | 2329xxx350 (xxx = bar value e.g. 280 = 28,0 bar) | |
| Weight pc | 0,64 kg | |
| Licensing | Type tested safety valve (Modul B & D) | |
| Individual approval is possible according to Module F (2014/68 EU) | ||
| Conformity assessment | Category IV - Modul B+D (2014/68 EU) | |
| Applied standards and | DIN EN 378 | |
| technical specification | DIN EN ISO 4126-1, Guideline 2014/68 EU | |
| Suitable for | Fluids in group 1 (please consult manufacturer) and 2 | |
| for all common refrigerants like HFC and CFC | ||
| Includes refrigeration fluids safety class A2L | ||
| NO NH3 refrigerant ! | ||
| Permissible temperature range | -30°C to +70°C | |
| Nominal Opening Pressure | as per catalogue ± 3% (EN ISO 4126-1 7.2.1) | |
| Opening Pressure Diff | ≤ 10%, min. 0,1bar | |
| EN ISO 4126–1 Travel ° ≤ 0,26 | ||
| Threaded connection | G3/4’’ | |
| Max flow diameter | 6mm | |
| Housing material | brass CW617N (2.402 or CuZn40Pb2) | |
| Output | G 1" free blow-off | |
| Reduced discharge coefficient | 0.77 KDR 0,69 | |
| Remarks: | Each valve tested and controled under supervision of DEKRA quality control | |
| certificate with control number attached to each valve | ||
Data sheet
Specific References

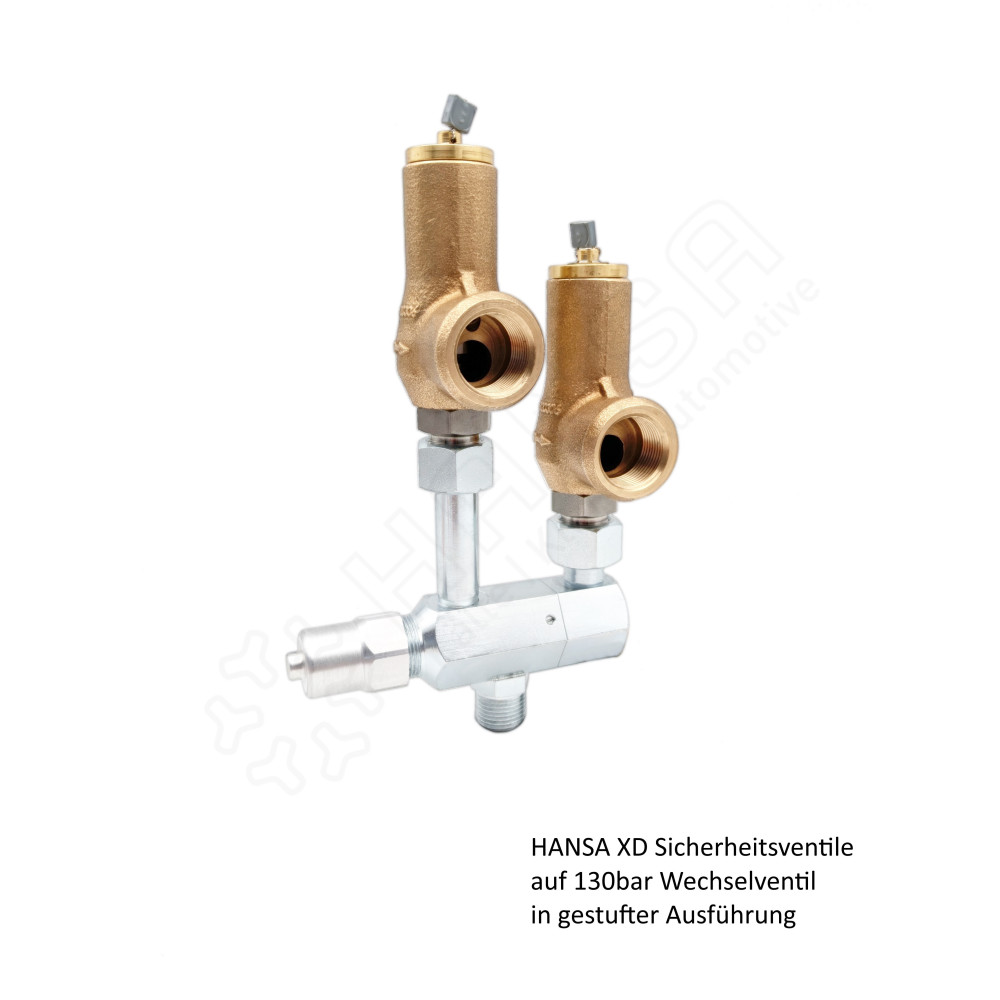

Changeover valve SET for KSV/ÜSV 12.5 mm | G1/2'' 130 bar Including connector set / copper seal...
