HANSA Connection nipple G1/2'' | G1/2'' 42mm_2700509050
Connection nipple G1/2'' | G1/2'' 42mm fits HANSA safety valve type KSV ÜSV to HANSA changover...

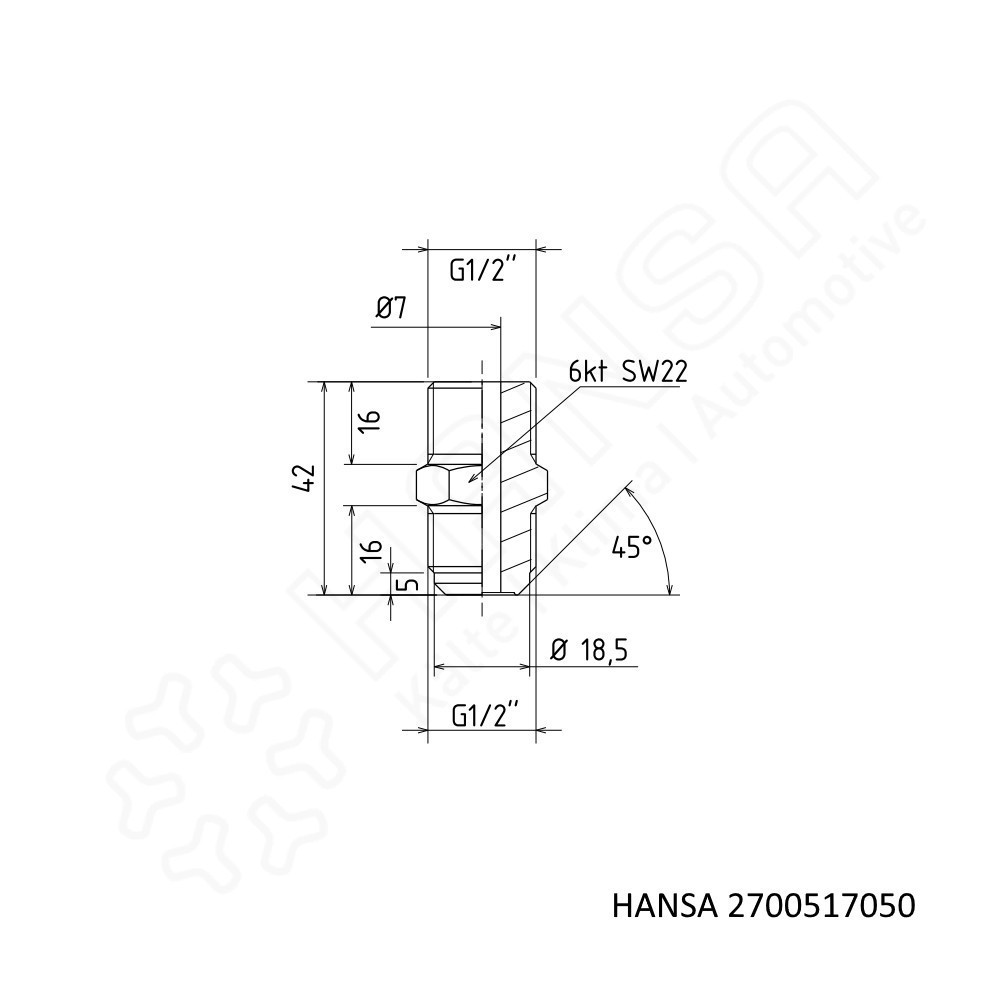

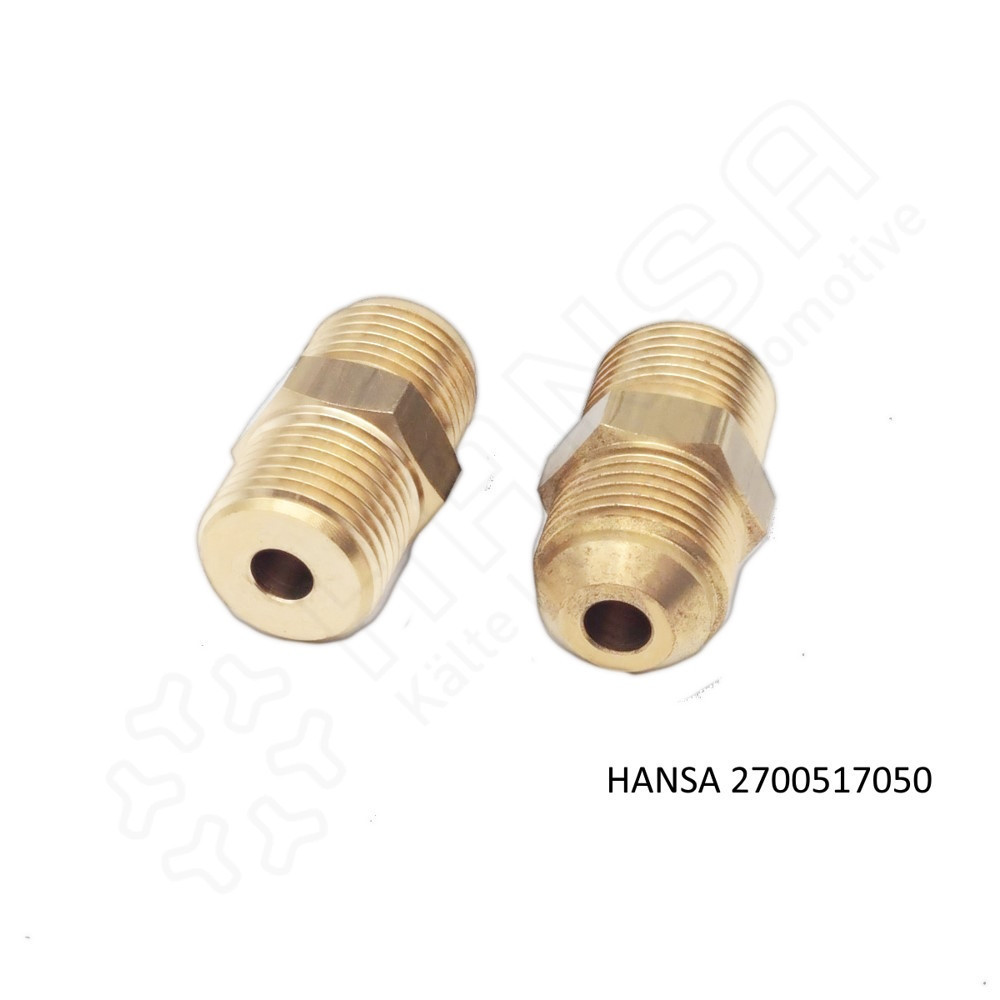

Connecting nipple 7 mm | G1/2'' with ID 7 mm
Remark: Not suitable for HANSA safety valves due to ID 7mm. Please use 2700509050 instead
Dimension (LxWxH): 42x22x22 mm
Weight: 0,098 kg
Part-No.: 2700517050
Made in Germany
Connection nipple G1/2'' | G1/2'' 42mm fits HANSA safety valve type KSV ÜSV to HANSA changover...
Connection nipple 7/16-20UNF with 5V1 thrat for valve core type "Schrader" fits tube size 6 mm /...
Solder connector for KSV / ÜSV 22 mm solder joint G1/2" Dimension (LxWxH): 25x25x47 mmWeight:...
Connection nipple for KSV/ÜSV G 1/2 | 7/8''-14UNFOperating pressure up to 140barDimension...
Solder / brazing adapter G1" 22mm fits HANSA safety valves type KSV and HD-KSVMax operating...
Connection nipple 7/8''-14UNF fits tube size 15/16 mm | 5/8''According to DIN 8906Dimension...
Connection nipple 5/8''-18UNF 3/4''-16UNF fits 12 mm tubeAccording to DIN 8906Dimension (LxWxH):...
Solder adapter for exchange valve 22 mm solder joint G1/2" with sealing ring The soldering...
Solder adapter 1.1/4"-12UNF-2B 22mm for ÜSVDimension (LxWxH): xx mmWeight: 0,121 kgPart-No.:...
Solder connector for HANSA safety valves KSV / ÜSV 18 mm solder joint G1/2" Dimension (LxWxH): xx...
Connection nipple 7/16-20UNF fits ube size 6 mm / 1/4'' according to DIN 8906Dimension (LxWxH):...
Connection nipple DIN 8906* 10 mmAccording to DIN 8906Dimension (LxWxH): xx mmWeight: 0,036...
Connection nipple with the valve insert and sealing cap 7/16''-20UNF fits tube size 6 mm /...
Connection nipple 1 1/4''-12UNF fits tube size 22 / 7/8''According to DIN 8906Dimension (LxWxH):...
Manometer connection nipple 6 mm | G1/4'' G1/4''Dimension (LxWxH): xx mmWeight: 0,029...
Adapter 5/8 "-18UNF-2ADimension (LxWxH): xx mmWeight: 0,089 kgPart-No.: 2700307050Made in Germany
Connection nipple 7/16''-20UNF 3/8''-16UNF fits tube size 12 mmAccording to DIN 8906Dimension...
