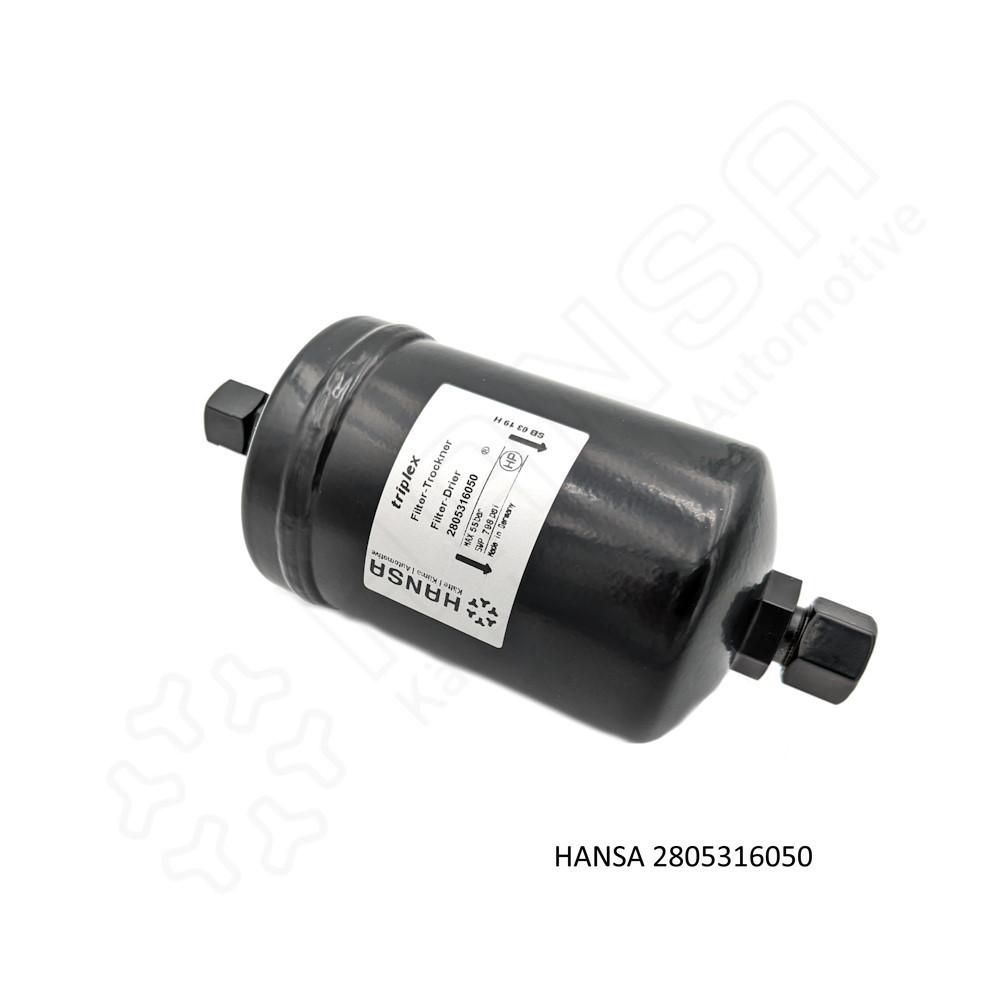

HANSA Filter drier Triplex® 55bar flare connection 7/8-14UNF TRI 2805316050

Filter drier Triplex® 55bar flare connection 7/8-14UNF fits tube size 16 mm | 5/8''

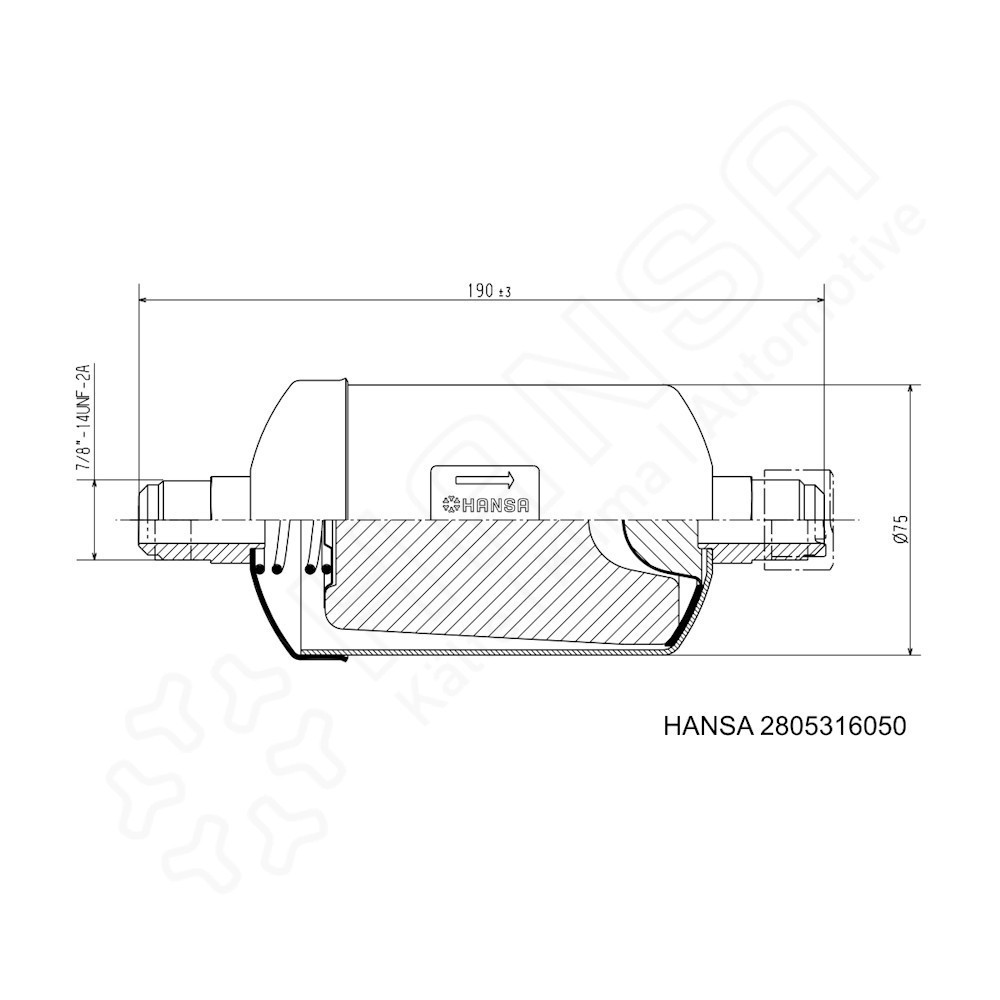

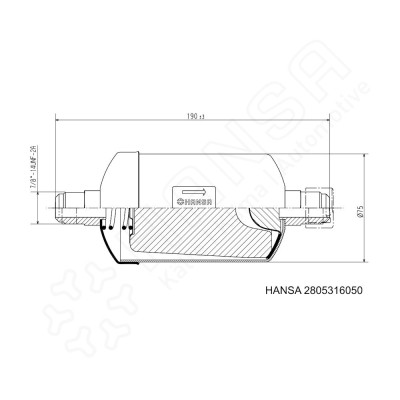

Dimension (LxWxH): 190x75x75mm
Weight: 0,899 kg
Part-No.: 2805316050


OEM 88-62-09-00025-00  8862090002500

Made in Germany



Download PDF

Triplex® Filter Dryer for liquid refrigerants, Optimised mixture of molecular sieve and activated aluminium oxide.
Temperature range: -40°C +120°C
  max. operating pressure: 55 bar
 high water absorption capacity
    high acid absorption capacity
    Fine filtration up to 15 micron
    Steel housing
    Closed design
    3-fold filtration by granulate block, filter fleece and brass mesh filter
    CE-marking according to PED 97/23 EC not required
  R290 Propane suitable: yes
    R744 CO2 suitable: yes
    R717 Ammonia suitable: yes (ensure correct seal)

2805316050
4251692915318

Data sheet

Material design
Steel
Connection type
Flare
Connection
7/8''-14UNF
Pressure range
55 bar
Fits
5/8''
Ø 16mm
