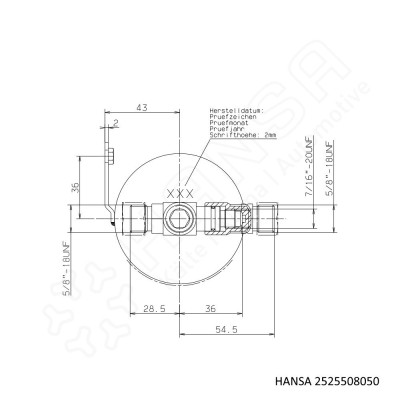

HANSA Receiver drier 0,54l Ø75 x167mm sight glass access point STS2525508050

Receiver drier 0,54l Ø75 x 167mm O-ring connector 5/8''-18UNF with sight glass, access point & bracket

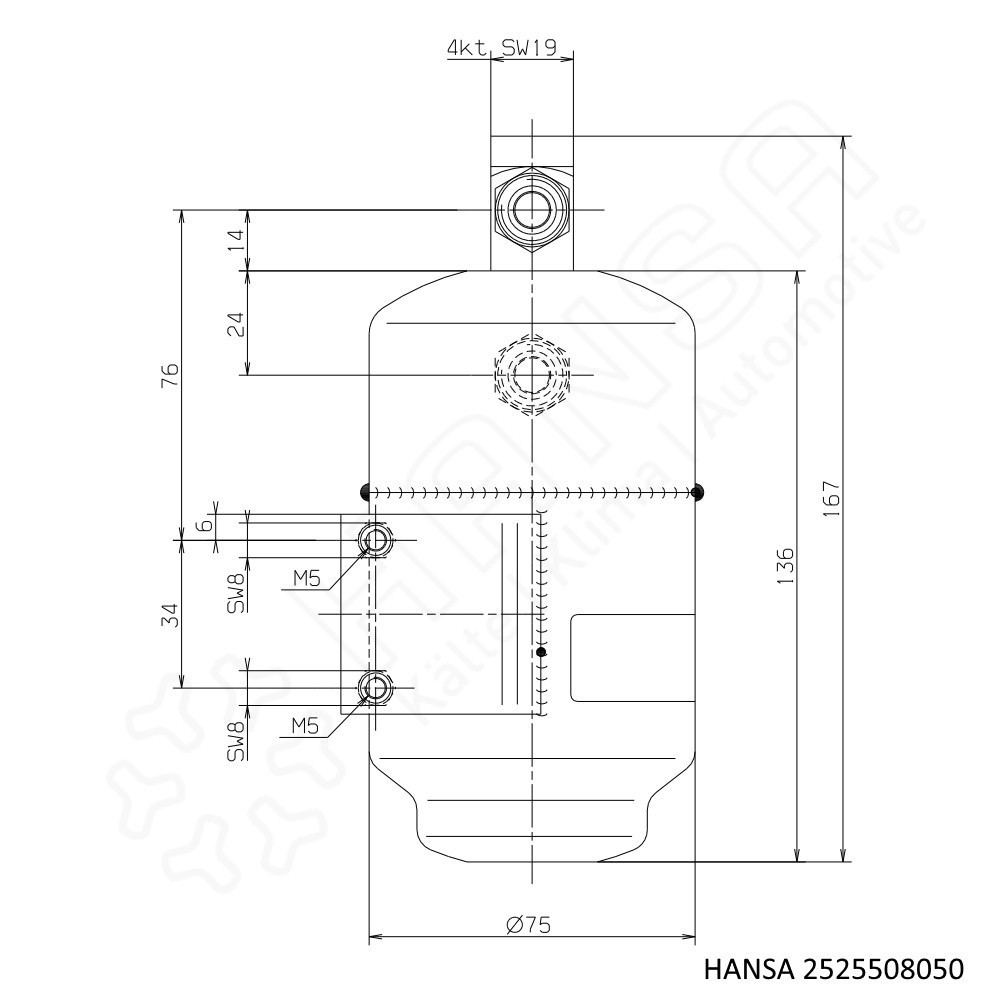

Dimension (LxWxH): 167x75x75 mm
Weight: 0,613 kg
Part-No.: 2525508050

OEM: 454-100-0003 4541000003

Made in Germany



Download PDF
  • Steel housing - capacity approx. 0.54cm³

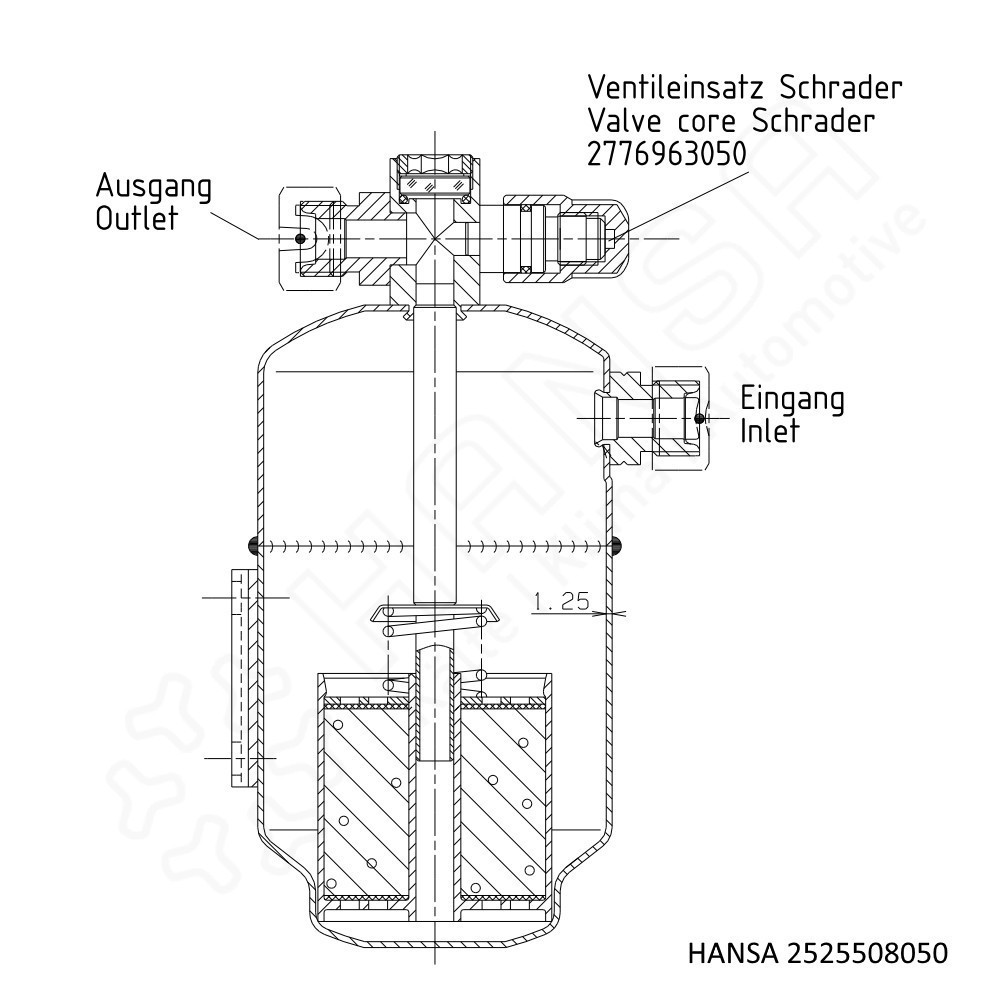

  • Sight glass integrated
  • Water absorption of 8g at 60°C (134a)
  • Optionally available with holder, sensor and safety valve
  • Filter cartridge with either pure molecular sieve or addition of aluminium oxide
  • Burst pressure resistant >= 100 bar
  • Operating pressure <= 40 bar
  • Variable connection geometry
  • Vibration or shock resistant (4G or 10G)
  • Drying and filtering of fluids of group I and II or safety class A2L (except refrigerants containing NH3 and NH3)
  • Approved for R134a, R1234yf, R1234ze, R290, R410a, R513a, R600a, R744a (up to the max. operating pressure specified below), among others
2525508050
4251692916995

Data sheet

Material design
Steel
Connection type
O-Ring
Connection
5/8''-18UNF
