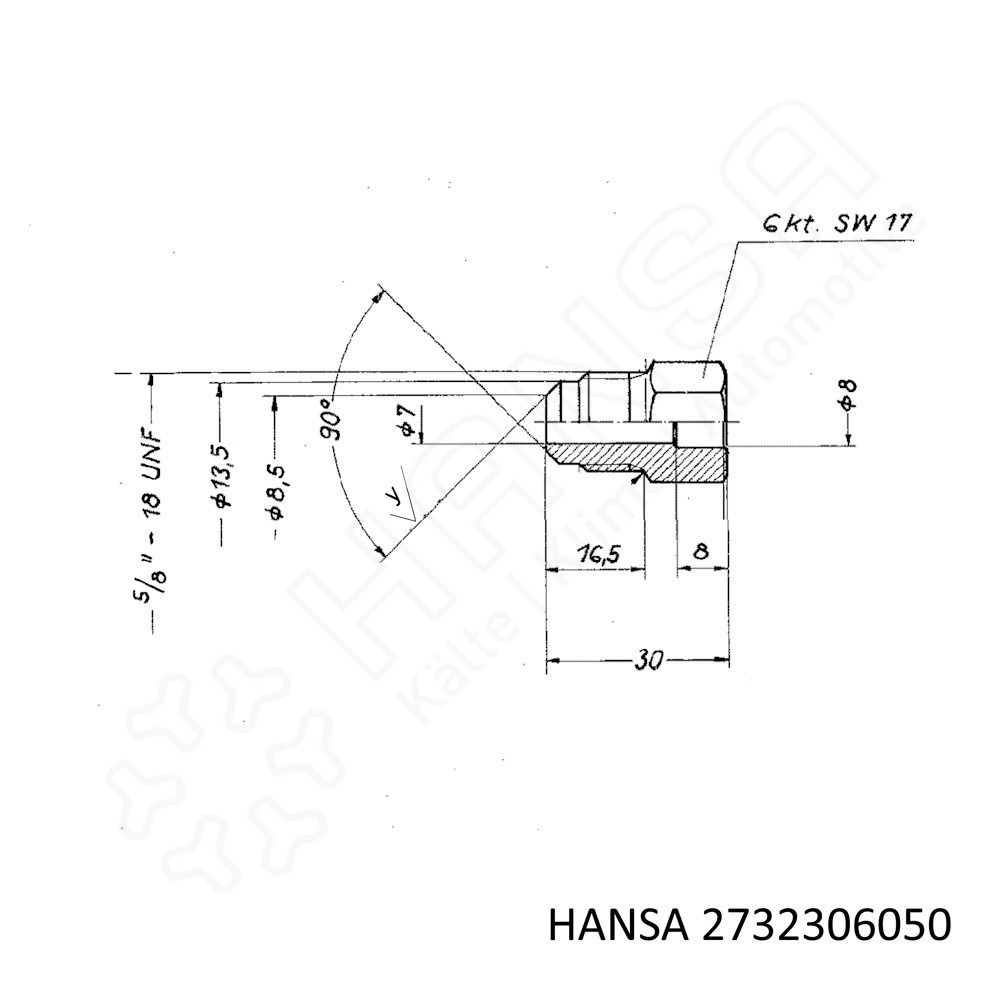

HANSA Solder socket 5/8''-18UNF fits 8 mm LS 2732306050

Solder socket brass 5/8''-18UNF fots tube size 8mm
According to DIN 8906
Dimension (LxWxH): 30x17x17 mm
Weight: 0,039 kg
Part-No.: 2732306050

Made in Germany

2732306050
4251692914571

Data sheet

Material design
Brass
Connection type
Flare
Solder ODF
Connection
5/8''-18UNF
Width across flats AF
17
Pressure range
140 bar
Fits
Ø 8mm
