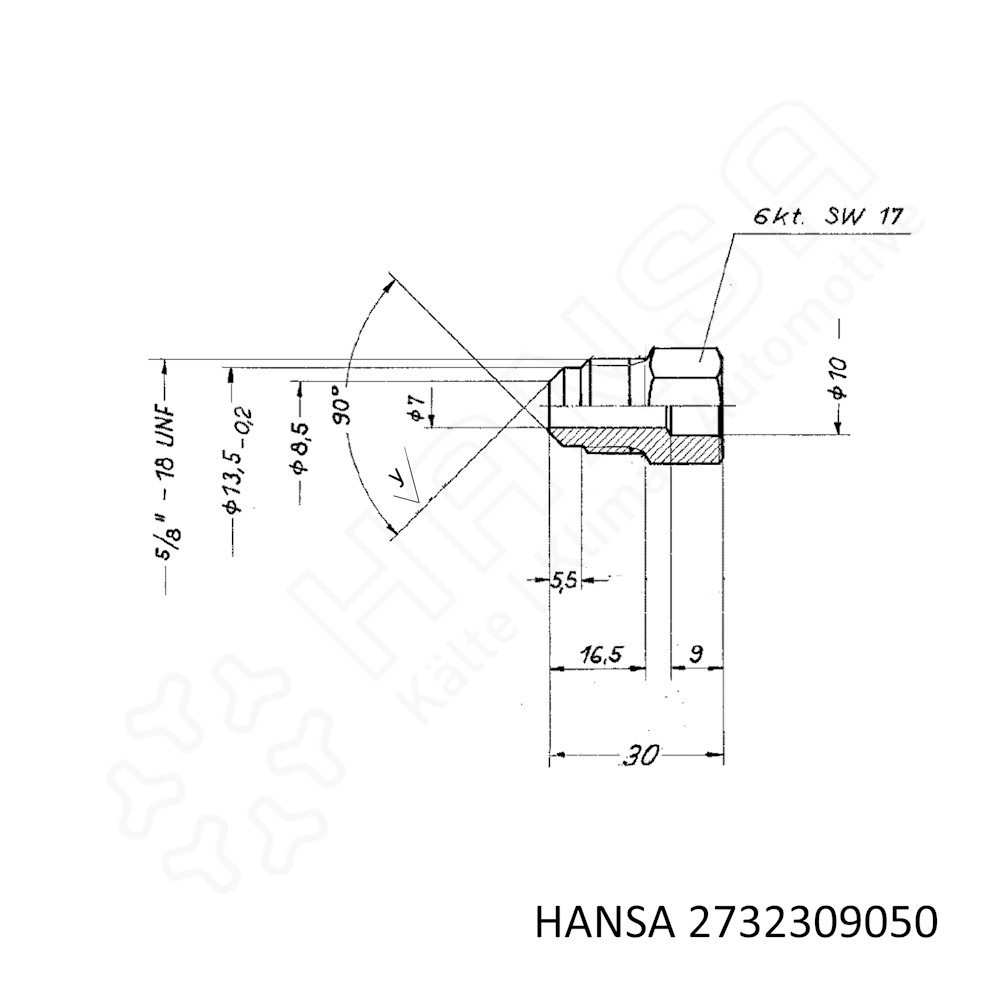

HANSA Solder socket 5/8''-18UNF for 10mm DIN 8906 LS 2732309050

Solder socket brass 5/8''18UNF fits tube size 10mm or 3/8''
According to DIN 8906
Dimension (LxWxH): 30x17x17 mm
Weight: 0,038 kg
Part-No.: 2732309050

Made in Germany


2732309050
4251692914588

Data sheet

Material design
Brass
Connection type
Flare
Connection
5/8''-18UNF
Width across flats AF
17
Pressure range
140 bar
