copy of HANSA Sight glass w indicator solder 28 mm FI 2402428250

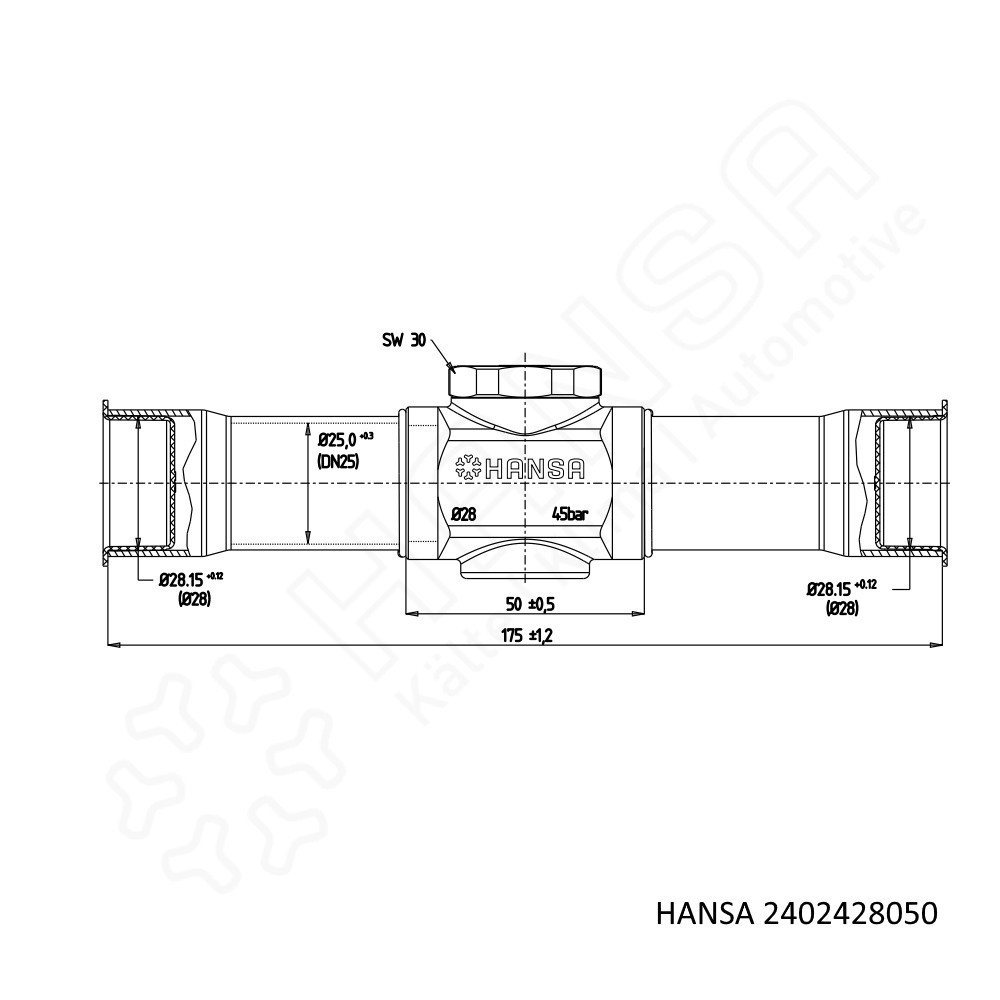

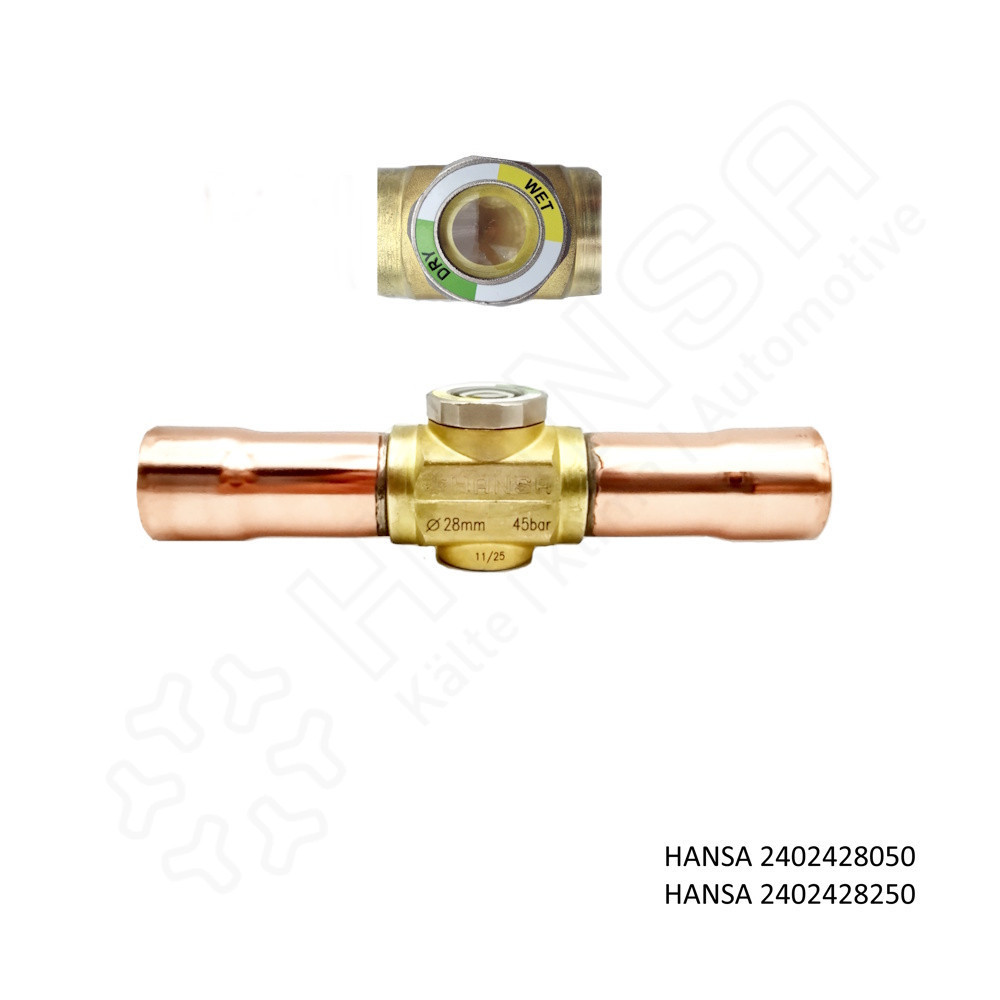

Sight glass w indicator solder 28 mm
-40°C bis +100°C Operating temperature
60 bar operating pressure
Dimension (LxWxH): 175xx mm
Weight: 0,243 kg
Part-No.: 2402428050

Made in Germany



Download PDF

Housing material: Brass (according to DIN EN 12164)

Connection pipe material: Copper CW024A (Cu-DHP)
Operating pressure up to 60 bar

Temperature range: -40°C to +100°C

Approved refrigerants:
HFC / PFC / CFC / KW / R744 / R290 / R1270
except refrigerants containing NH3.

Large viewing area on all versions, with and without indicator. High temperature and pressure resistance.

2402428250
4251692921562

Data sheet

Material design
Brass
Connection type
Solder ODF
