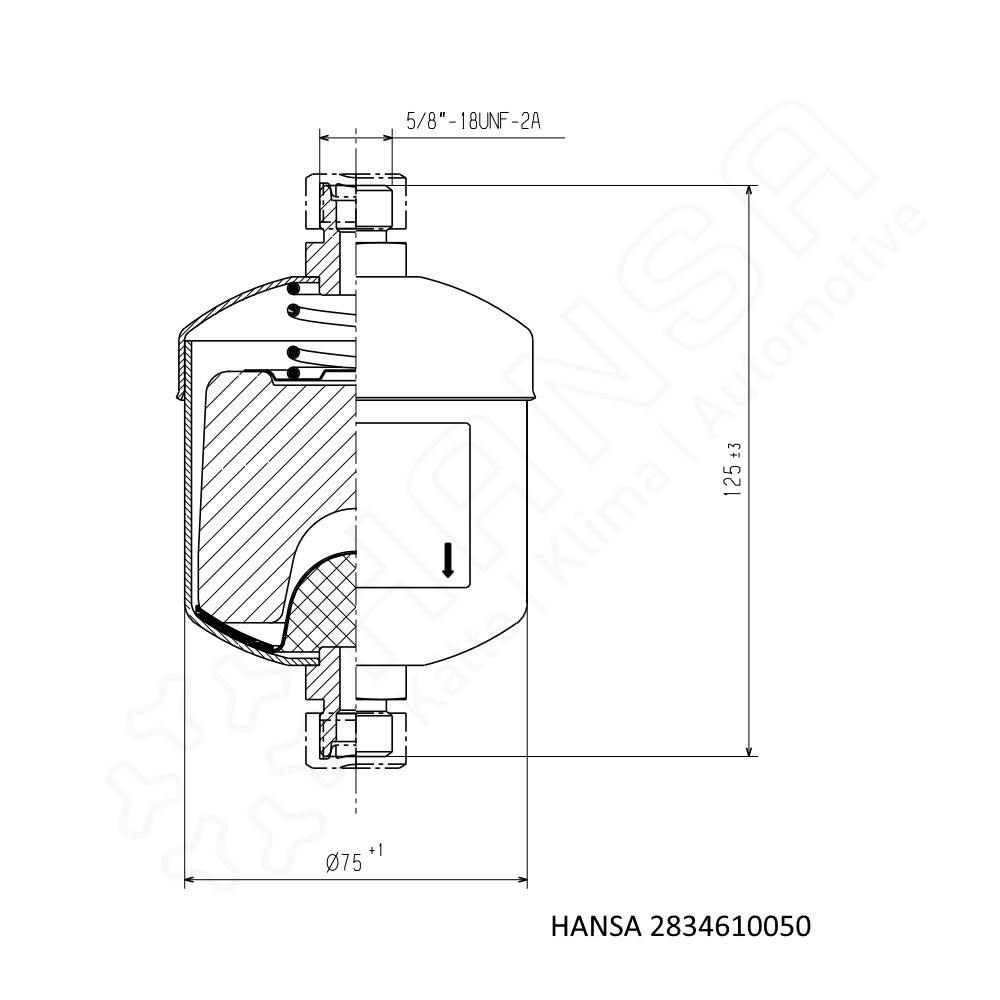

Filter drier Multiplex O-ring 5/8''-18UNF HM163 fits tube size 10 mm | 3/8''
60 bar
Dimension (LxWxH): 125x75x75 mm
Weight: 0,616 kg
Part-No.: 2834610050 2834610043
OEM A.001.835.65.47 A0018356547 H14-001-056 H14001056
Made in Germany
Filter drier HANSA Multiplex product range
HANSA parts numbers 2 8xx xxx 050
Solid core drier with drier block from molecular sieve plus 5% activate aluminum
as acid buffer and brass filter mesh
Operation pressure up to 60 bar
Operation temperatur range -40°C-+120°C
Usage: To dry and filter cooling fluids of group I and II liquids in
cooling / climate system circuits (except for NH3 or liquids containing NH3).
Data sheet
