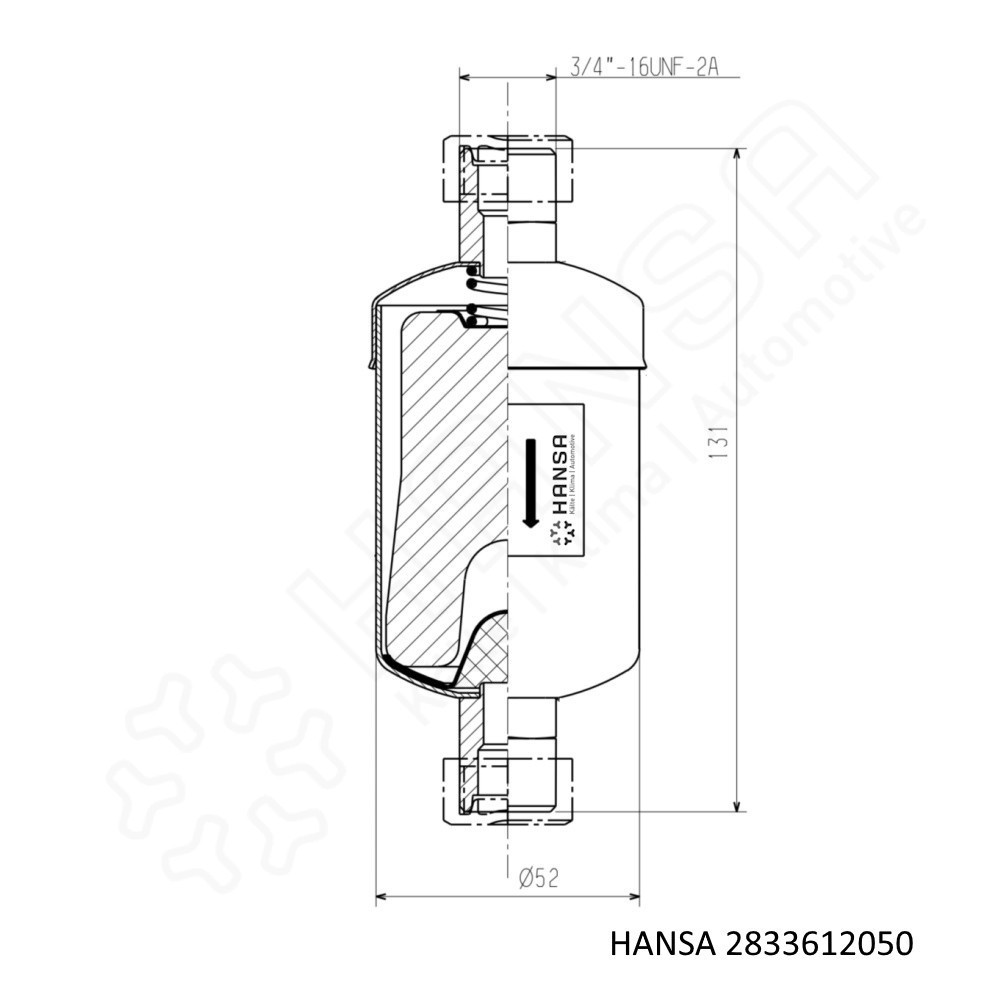

Filter drier Multiplex O-ring HM084 12 mm | 1/2''
60 bar
Dimension (LxWxH): xx mm
Weight: 0,335 kg
Part-No.: 2833612050
Made in Germany
Filter drier HANSA Multiplex product range
HANSA parts numbers 2 8xx xxx 050
Solid core drier with drier block from molecular sieve plus 5% activate aluminum
as acid buffer and brass filter mesh
Operation pressure up to 60 bar
Operation temperatur range -40°C-+120°C
Usage: To dry and filter cooling fluids of group I and II liquids in
cooling / climate system circuits (except for NH3 or liquids containing NH3).
Filter drier Multiplex HM304 flare connection 3/4''-16UNF fits tube size 12 mm | 1/2''55...
Drier cleaning drier 3/4''16UNF fits tube size 12 mm | 1/2''Dimension (LxWxH): xx mmWeight: 1,067...
Filter drier Multiplex solder connection HM305 sm 16 mm55 barDimension (LxWxH): xx mmWeight:...
Filter drier Multiplex solder XM082s for tube size 1/4''140 barDimension (LxWxH): xx mmWeight:...
Filter drier Multiplex flare connection HM303 10 mm | 3/8''55 barDimension (LxWxH): xx mmWeight:...
Range of application: Drying and filtering of Group I and II fluids in...
Filter drier Multiplex O-ring HM304 12 mm | 1/2''55 barDimension (LxWxH): 255x75x75 mmWeight:...
Filter drier Multiplex O-ring HM053 5/8''-18UNF fits tube size 10 mm or 3/8''60 barDimension...
Filter drier Multiplex O-ring HM305 16 mm | 5/8''55 barDimension (LxWxH): xx mmWeight: 1,206...
Filter drier Multiplex solder HM053 s 3/8''60 barDimension (LxWxH): xx mmWeight: 0,185...
Filter drier Multiplex flare connection 18 mm | 3/4''55 barDimension (LxWxH): xx mmWeight: 1,372...
Filter drier Multiplex O-ring HM083 HM083 5/8''-18UNF fits tube size 10 mm | 3/8''60 barDimension...
Filter drier Multiplex solder connection HM164 s 1/2'' 60 barDimension (LxWxH): 155xØ75 Weight:...
Filter drier Multiplex solder HM084 s 1/2''60 barDimension (LxWxH): xx mmWeight: 0,25 kgPart-No.:...
Filter drier Multiplex solder connection HM163 s 3/8''60 barDimension (LxWxH): xx mmWeight: 0,51...
Filter drier Multiplex solder HM052 s 1/4''60 barDimension (LxWxH): xx mmWeight: 0,175...
