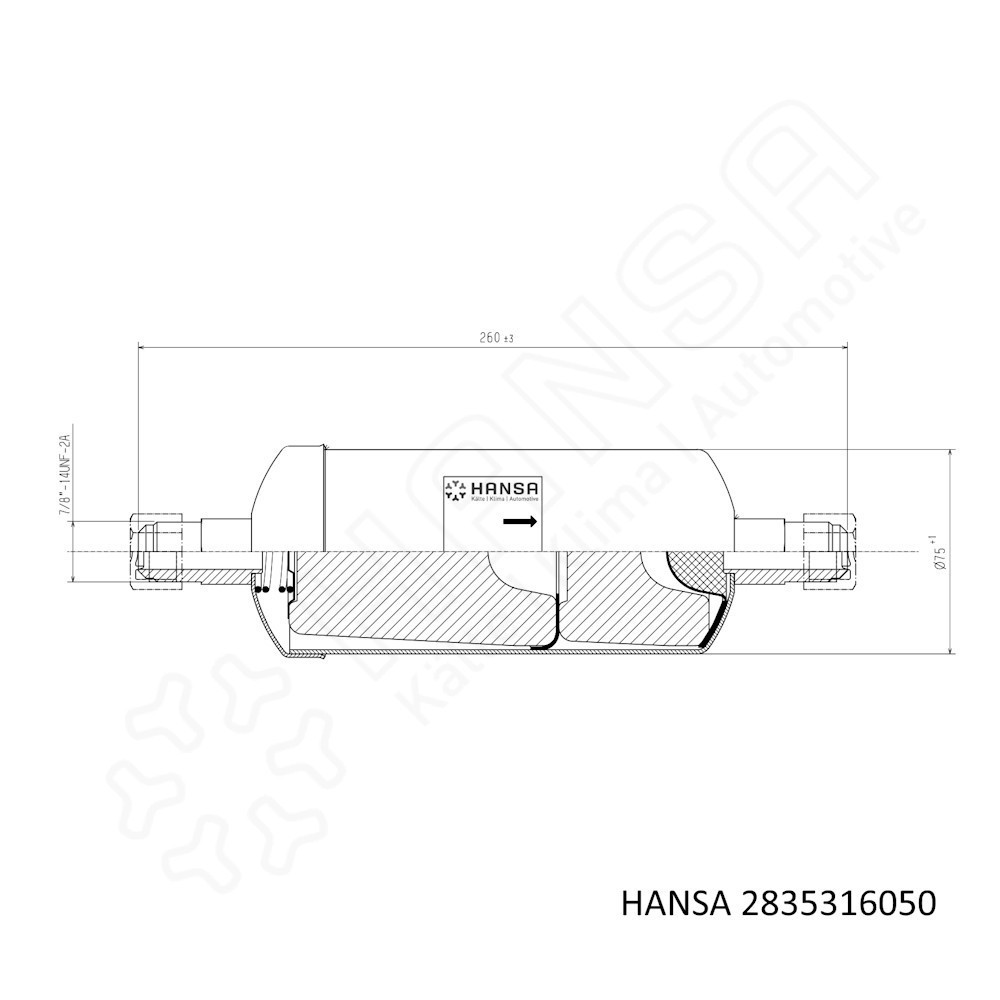

Filter drier Multiplex flare connection 7/8''-14UNF HM305 fits tube size 15/16 mm | 5/8''
55 bar
Dimension (LxWxH): 260x75x75 mm
Weight: 1,299 kg
Part-No.: 2835316050
OEM: A0008340869 , 83095B , 88-62-09-00027-00 , 88-62-09-00005-00 , 0008340869 , 146006600 , 1548638 , 3100016 , 3FLT156 , 544031 , 83095 , 83095A , 8467C75G02
Made in Germany
Filter drier HANSA Multiplex product range
HANSA parts numbers 2 8xx xxx 050
Solid core drier with drier block from molecular sieve plus 5% activate aluminum
as acid buffer and brass filter mesh
Operation pressure up to 55 bar
Operation temperatur range -40°C-+120°C
Usage: To dry and filter cooling fluids of group I and II liquids in
cooling / climate system circuits (except for NH3 or liquids containing NH3).
Data sheet
