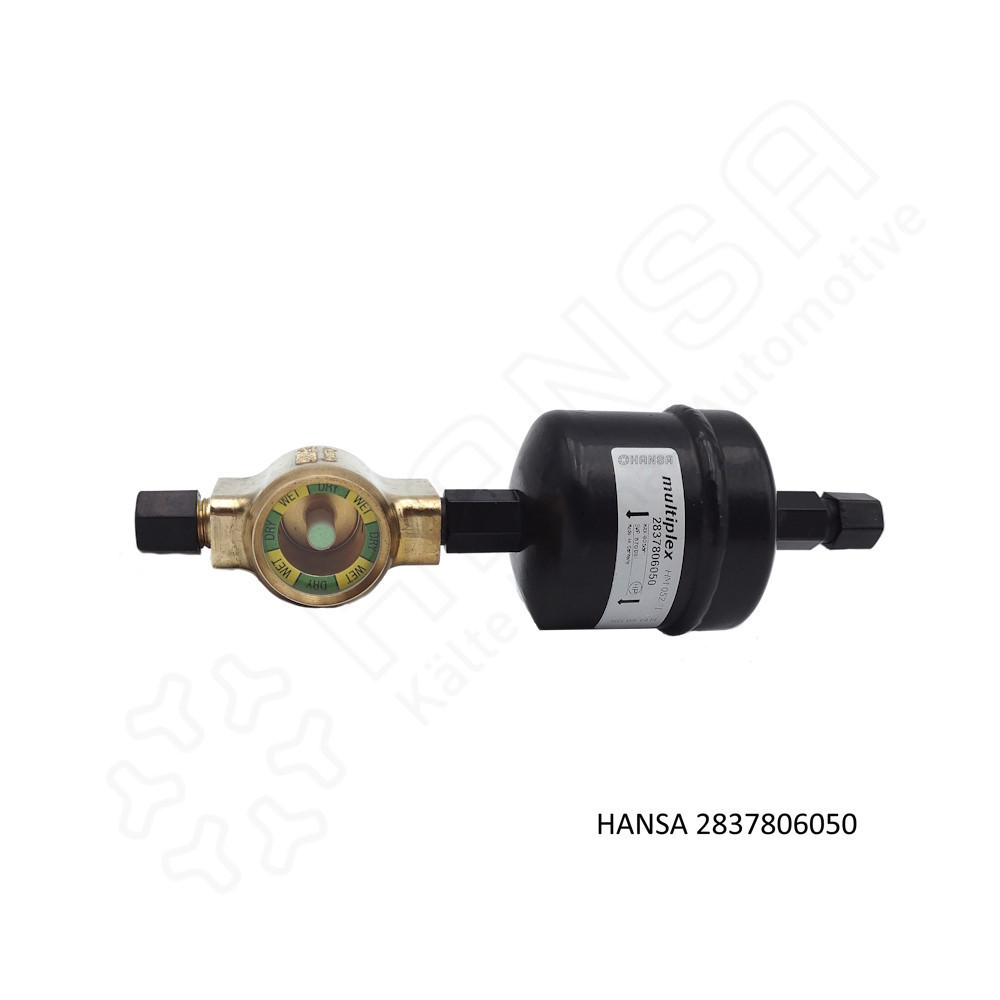

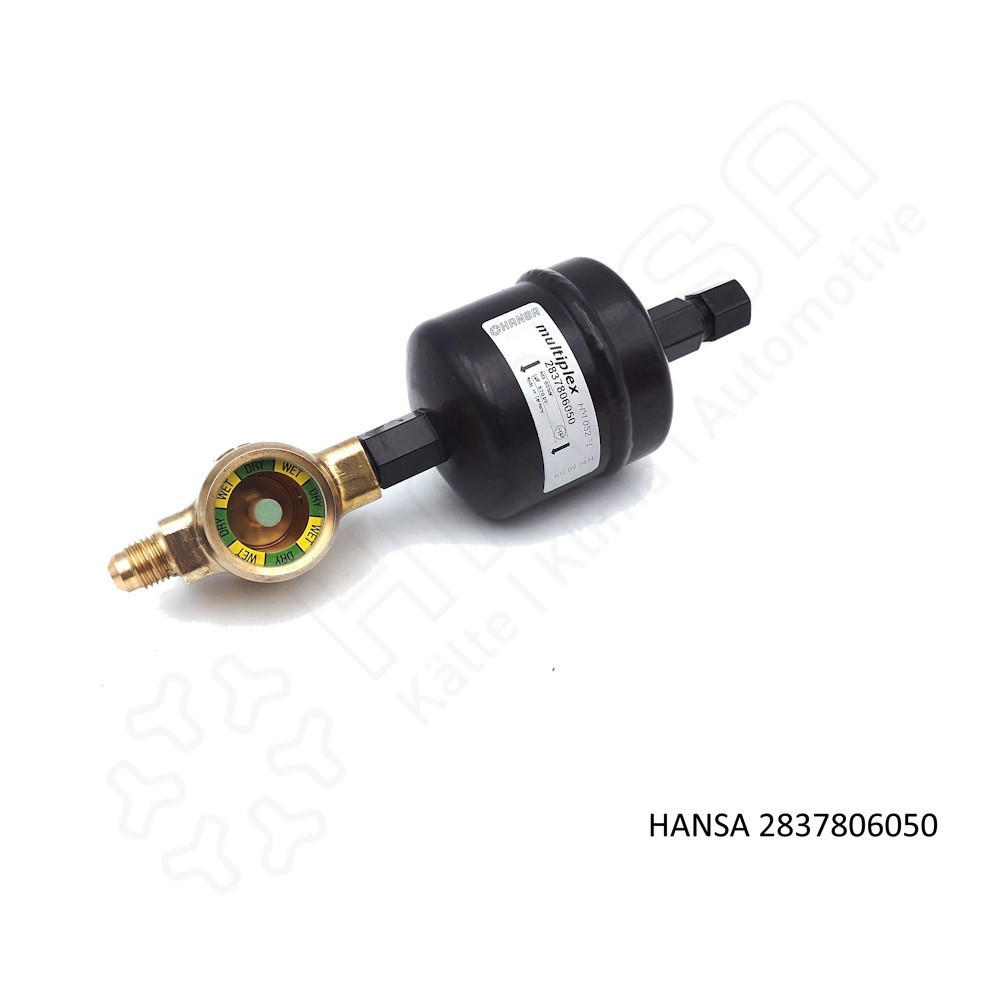

HANSA Filter drier sight glass combination w indicator HM052 Fl 6 mm | 1/4''_2837806050

Filter drier sight glass combination w indicator HM052 Fl 6 mm | 1/4''
60 bar

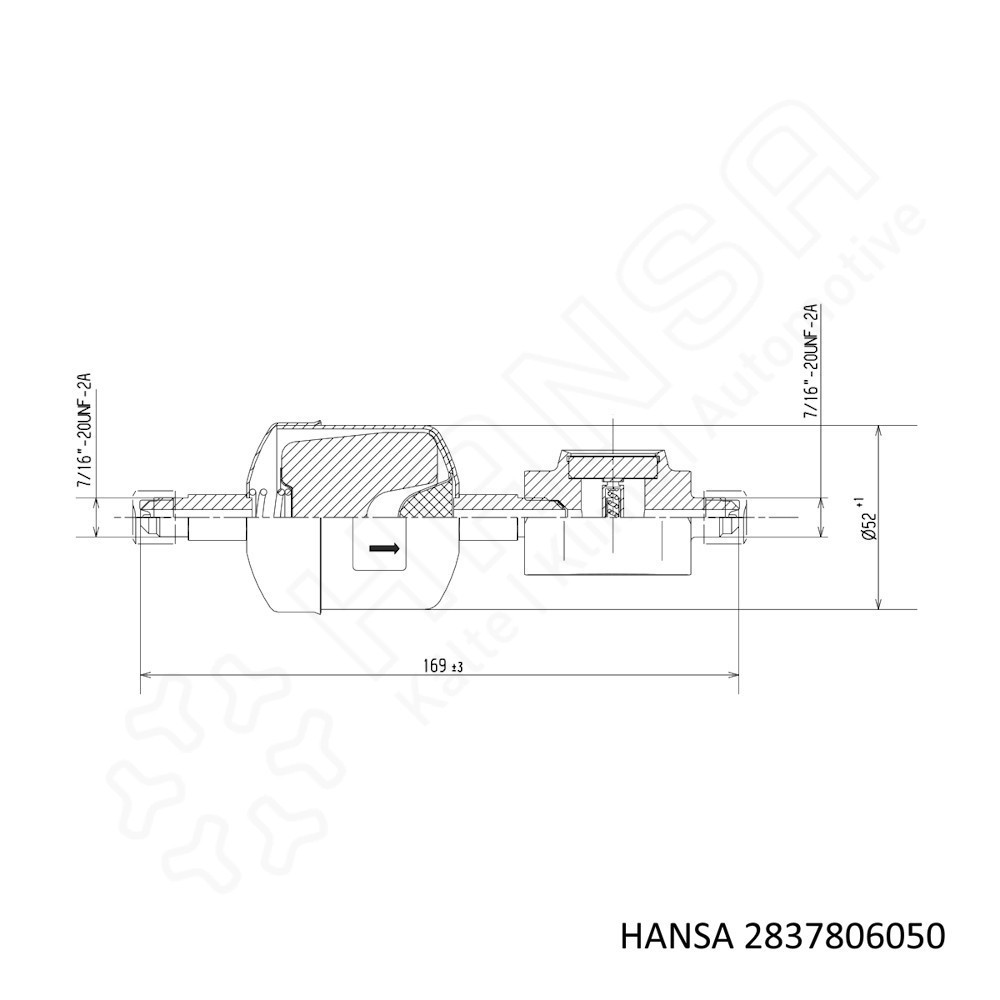

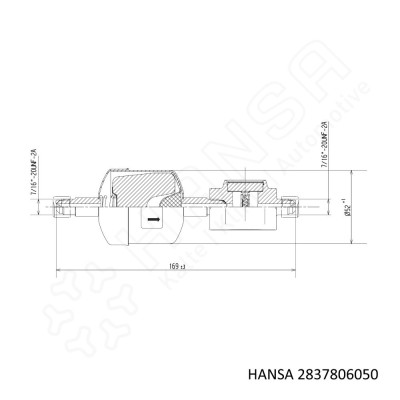

Dimension (LxWxH): 189x52x52 mm
Weight: 0,434 kg
Part-No.: 2837806050

NSN: 6680123422150

Made in Germany



Download PDF

Multiplex sight glass combi with indicator

Filter drier for liquid refrigerants, optimum mixture of molecular sieve and activated aluminium oxide

Technical details of the filter drier:

  • Temperature range: -40°C +120°C
  • Max. operating pressure: 60 bar
  • High water absorption capacity
  • High acid absorption capacity
  • Ultra-fine filtration up to 15 micron
  • Steel housing
  • Closed design
  • 3-fold filtration through granulate block, filter fleece and brass mesh filter
  • CE marking according to PED 97/23 EC not required
  • R290 Propane suitable: yes
  • R744 CO2 suitable: yes

Approved refrigerants: HFC / PFC / CFC / HC  / R744  / R290
except of NH3 containing refrigerants.

Sight glass housing material: brass  (acc DIN EN12164)

Typ SG: Indicates the lack of cooling agent in the refrigeration system. Large visible surface in all versions.

2837806050
4251692915738
