HANSA Filter drier sight glass combination HMSG 082 6 mm | 1/4''_2838906050

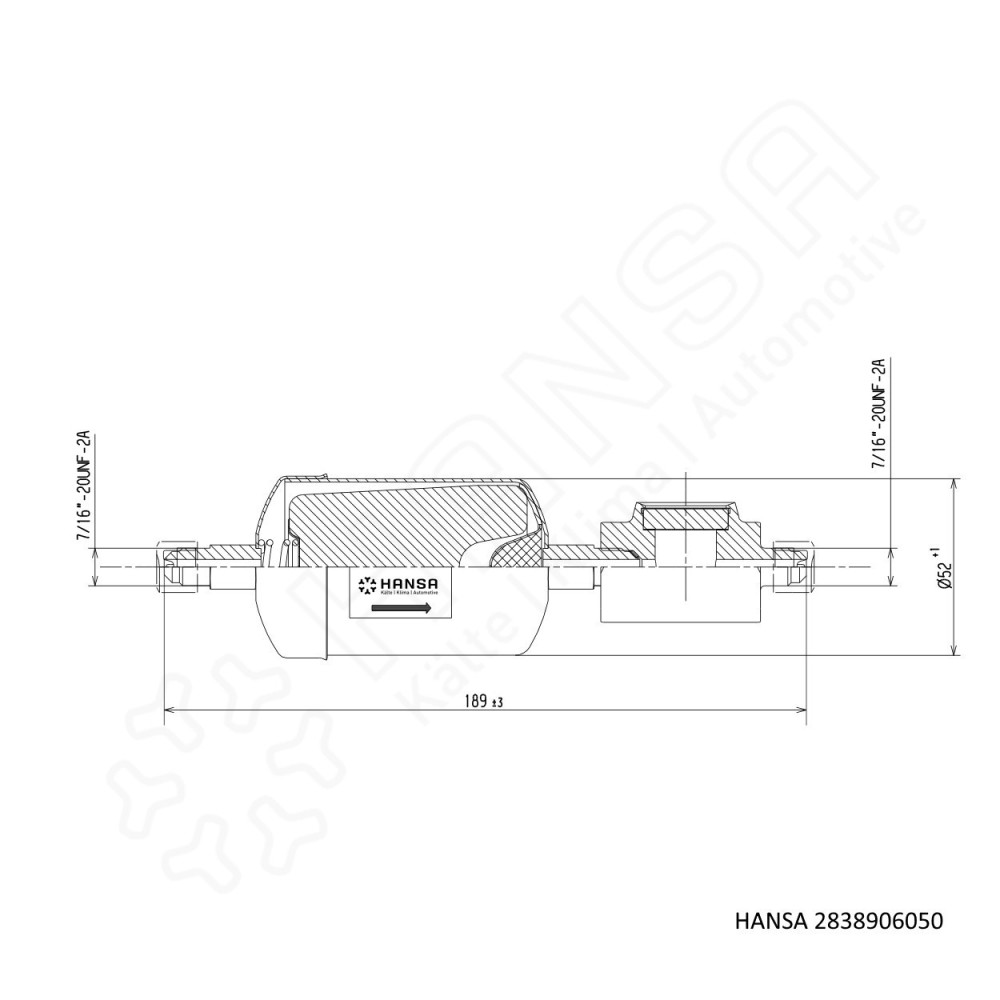

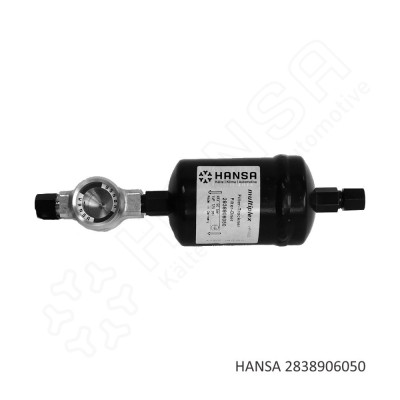

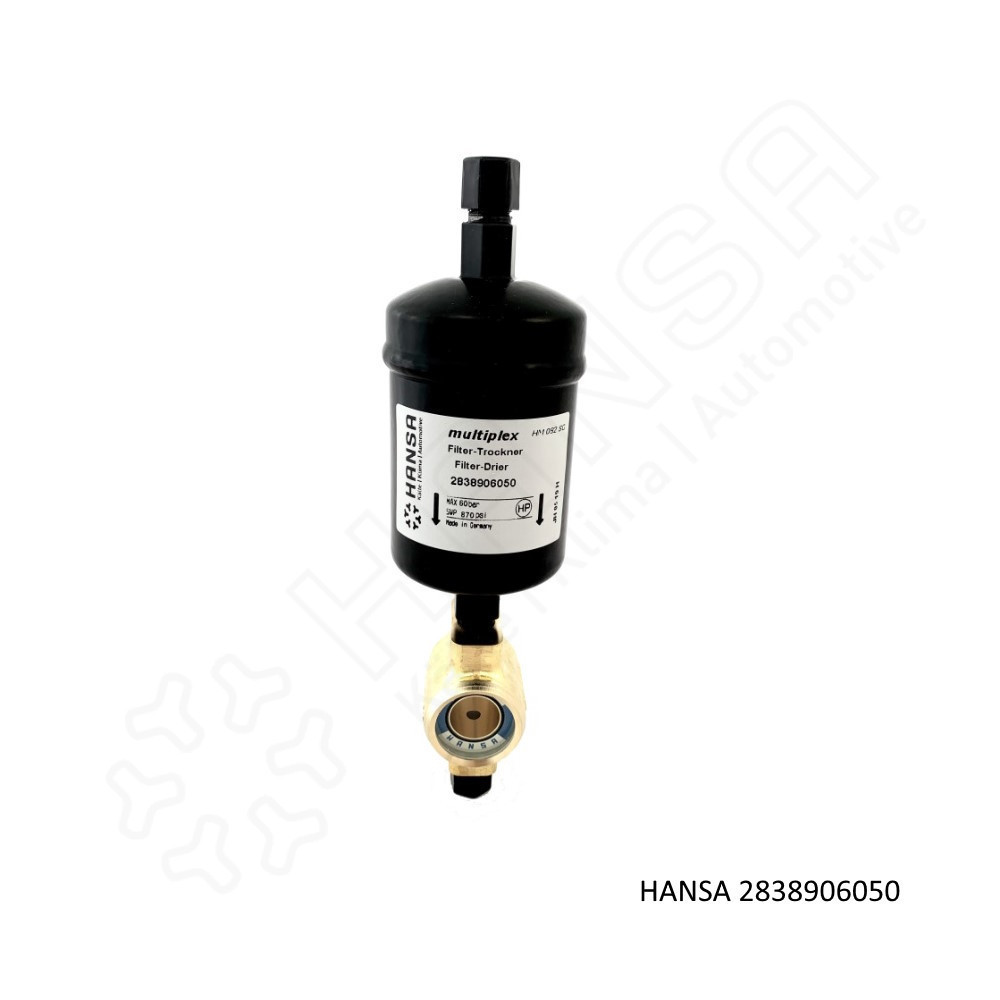

Filter drier sight glass combination HMSG 082 6 mm | 1/4''
60 bar
Dimension (LxWxH): 189x52x52 mm
Weight: 0,491 kg
Part-No.: 2838906050

Made in Germany



Download PDF

Multiplex sight glass combi

Filter drier for liquid refrigerants, optimum mixture of molecular sieve and activated aluminium oxide

Technical details of the filter drier:

  • Temperature range: -40°C +120°C
  • Max. operating pressure: 55 bar
  • High water absorption capacity
  • High acid absorption capacity
  • Ultra-fine filtration up to 15 micron
  • Steel housing
  • Closed design
  • 3-fold filtration through granulate block, filter fleece and brass mesh filter
  • CE marking according to PED 97/23 EC not required
  • R290 Propane suitable: yes
  • R744 CO2 suitable: yes

Approved refrigerants: HFC / PFC / CFC / HC  / R744  / R290
except of NH3 containing refrigerants.

Sight glass housing material: brass  (acc DIN EN12164)

Typ SG: Indicates the lack of cooling agent in the refrigeration system. Large visible surface in all versions.

2838906050
4251692915813
